17343-124

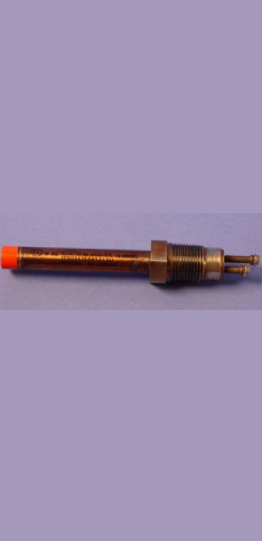

Fire and Overheat Detector
The Fire/Overheat Detector is a normally open device that helps
to monitor fire and overheat conditions. It can be used in
locations with high ambient temperatures.
The detector is made from welded stainless steel and is
completely sealed. It is not repairable and cannot be
disassembled. The detector is set to a specific alarm
temperature when it is made at the factory and the temperature
cannot be adjusted.
The detector electrically connects to its related equipment
through two terminal posts with internal threads. Stainless steel
screws attach the wiring from the related equipment to the two
terminals. The detector mechanically attaches to the monitored
area by 3/4-14 National Pipe Thread (NPT) located on the head
of the detector. The temperature setting of the detector is
marked on the hex body. See Figure 1 in the Outline Drawing for
17343-124 section for details.
