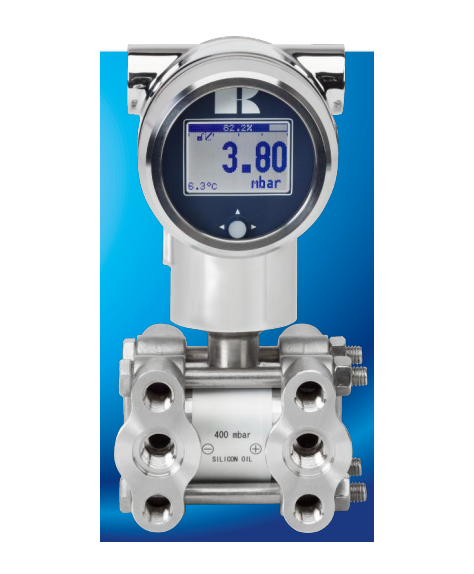

Series DP-4000
The DP-4000 is a high-performance differential pressure transmitter with a compact and robust Stainless
steel electronics housing. The calibration / programming can be done very easy without testpressure by
using the Unique One Touch programming button together with the Graphic display with
backlight. The multilingual graphic display can indicate a number of chosen engineering units including
the process temperature as well as the mA output in a bargraph. Damping times can be adjusted and a
4-20 mA current simulation can be performed. For flow measurement a square root function is built-in
with adjustable cut off point. The output is 4-20 mA including HART® protocol (HART® 7.0).
ATEX II1G Ex ia IIC T6 Ga and IECEx approvals are available.
